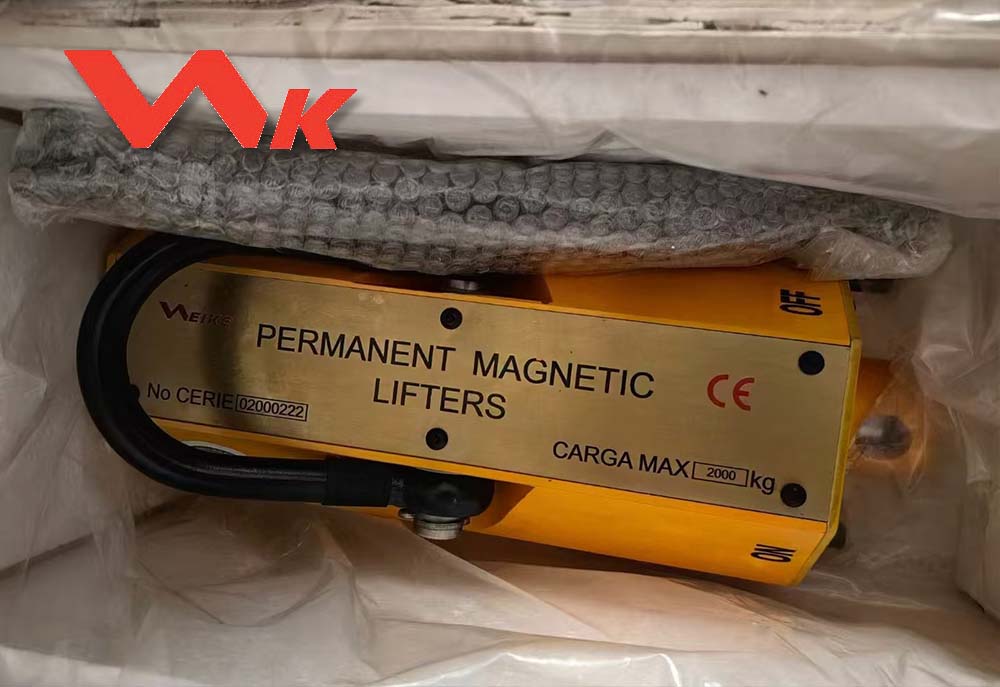

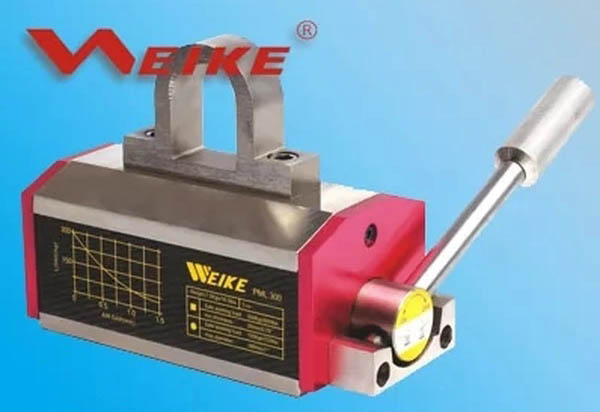

Permanent Magnetic Lifter

Permanent magnetic lifter (lifting magnet) is mainly applicable to lift, carry and stack steel and iron components, especially for moving workpieces in processing. Not only the lifter can carry flat workpiece, but also can carry steel rod, tubes and round workpiece etc. Because of magnetic attraction itself, the lifting magnets needn't slings, clamps or other holding devices which may damage the surface of lifted goods. It is no need to charge with electricity. Special structure keeps the magnetism. Lifting magnet is made by permanent magnets, never demagnetization. Weike permanent magnetic lifter is large load lifting capacity, small volume, easy operation and safety in use.

Features

1 Main structure: lifter body, rings, operation handle, locking device.

2 Rated load lifting capacity ≥200KG Force of handle ≤ 50N

3 High performance NdFeB magnetic steel and the best magnetic circuit guarantee strong attriction. The safety factor can reach to 3.0, it means every lifter can bear at least 3 times of its safety lifting capacity.

4 All the steel components of the lifting magnets are guaranteed long time service life without malfunction. High quality steel is processed by CNC machine tool, it makes the precision and strength of every lifter is the same.

Models

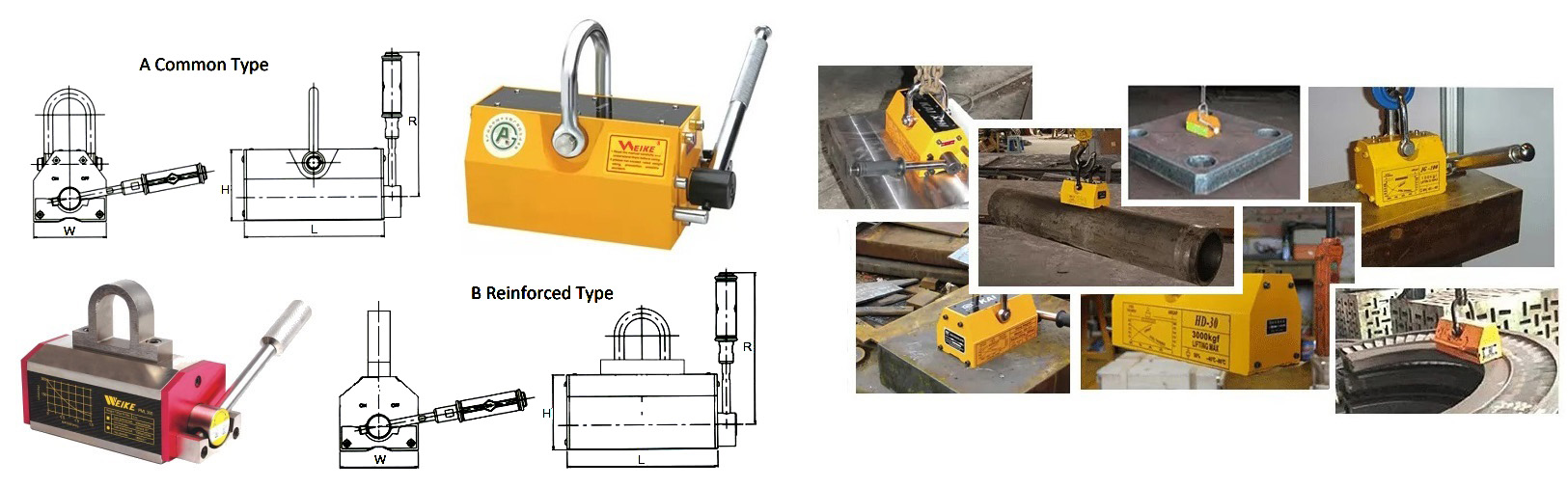

Model	Length L mm		Width W mm	Height H mm		Handle R mm		Weight kg		Max Lifting Weight kg
Model	A	B	Width W mm	A	B	A	B	A	B	flat work piece	steel rod
PML 100	130	135	70	60	70	200	190	4	5	100	50
PML 300	200	210	95	80	90	230	225	9	11	300	150
PML 600	275	285	125	100	110	360	255	25	28	600	300
PML 1000	310	315	160	140	150	380	385	41	50	1000	500
PML 1500	390	400	160	140	150	380	385	52	62	1500	750
PML 2000	490	500	160	140	150	380	385	68	80	2000	1000

Note: The safety factor of common type is 3, reinforced type is 3.5

PDF Catalogue
