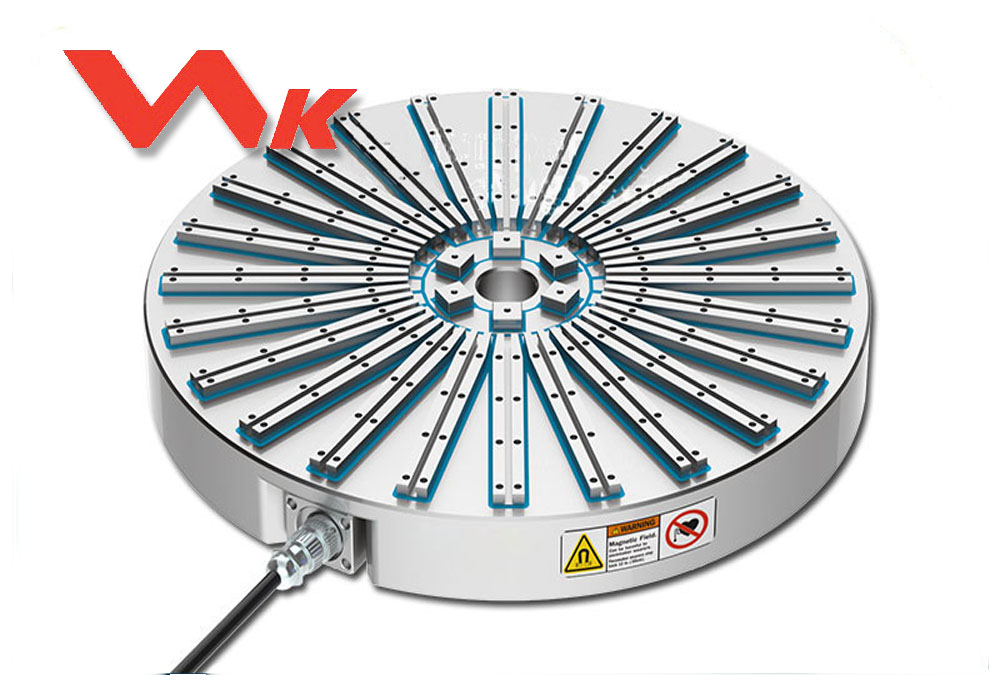

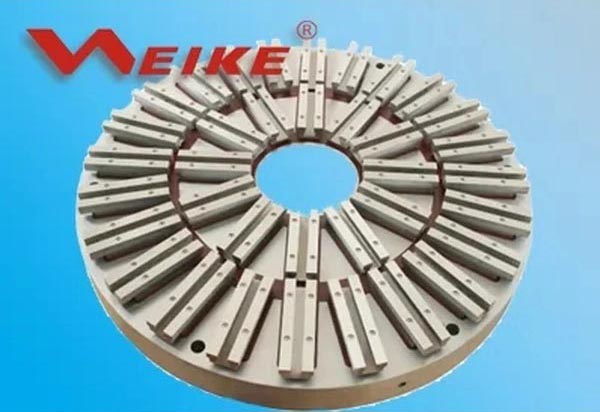

This type of round electro permanent magnetic chuck is used for vertical lathe, CNC five-axis precision indexing device, CNC five-axis integrated cutting machine tools, etc. The use of circular radioactive magnetic pole structure, suitable for turning and grinding of circular workpiece. The workpiece contacts all magnetic poles at same time, so the workpiece is fixed in the magnetic chuck by a strong holding force. This type of round electro permanent magnetic chuck adopts the design of multiple magnetic circuits, 1-4s (de)magnetization (depending on the size of the chuck), magnetic force is adjustable, no need to continue to power after magnetization.

Features

- Easy and fast to clamp a workpiece, shorten the workpiece clamping time, 2 seconds of magnetization and demagnetization.
- Due to the radial distribution of the magnetic poles. The workpiece is fully attracted, reduce the internal stress caused by binder plate.
- Additional groove design, can support additional secure fixing points and multiple clamping ways.
- Through the quick connector to remove the connection cable , The round electro permanent magnetic chuck can be free to rotate (also available conductive slip ring mechanism, no need to plug the quick connector)

Models

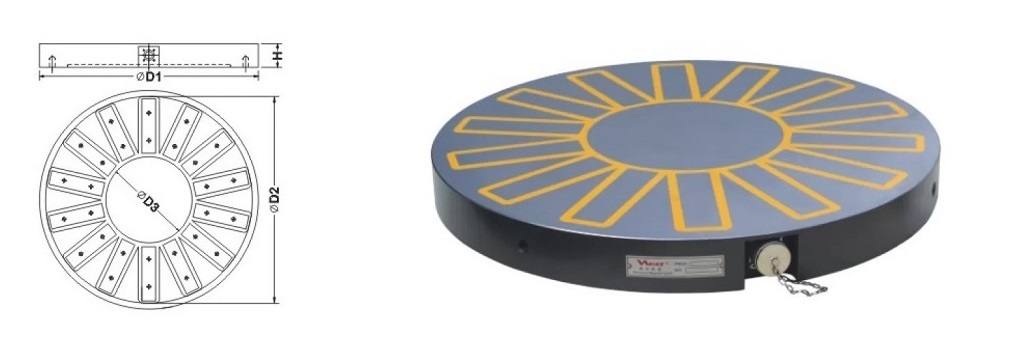

Model	Overall Size mm				Weight kg	Pole Number
	D1	D2	D3	H
DYRR-600	635	600	250	80	168	14
DYRR-800	835	800	250	80	320	14
DYRR-1000	1035	1000	250	80	520	14/28
DYRR-1250	1285	1250	300	80	832	16/32
DYRR-1400	1435	1400	350	80	1156	18/36
