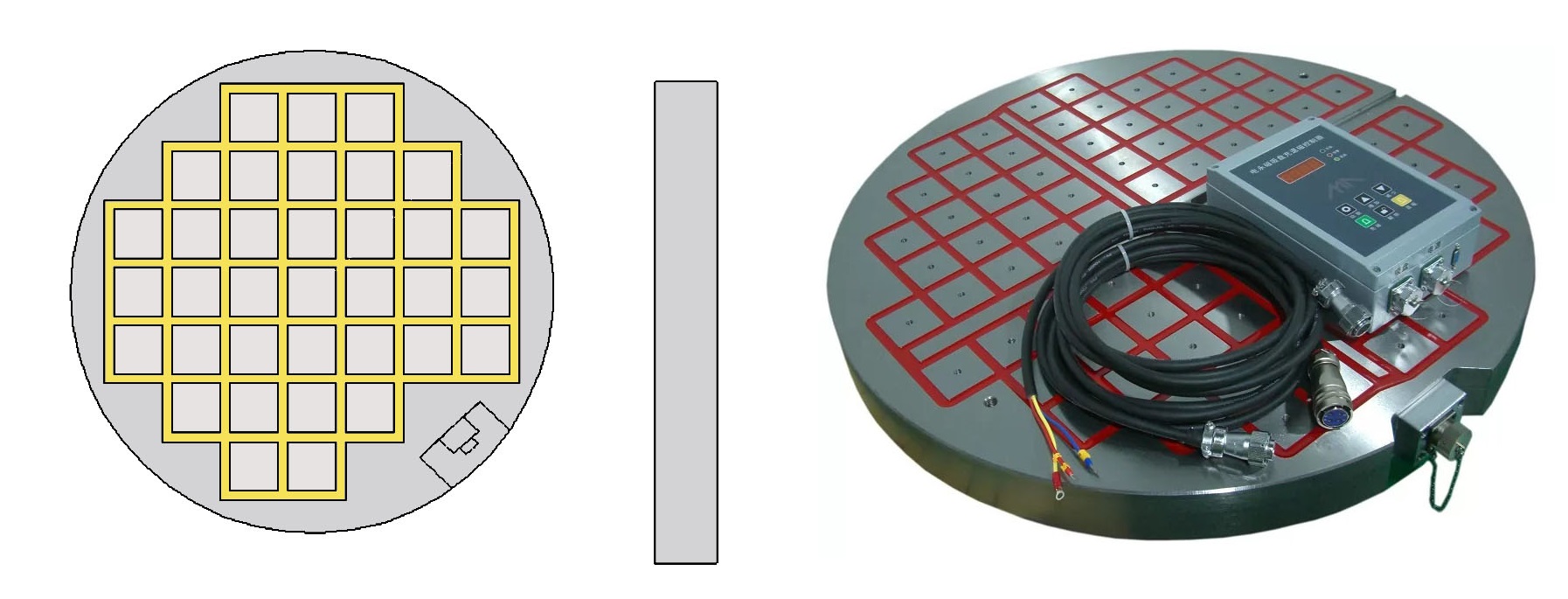

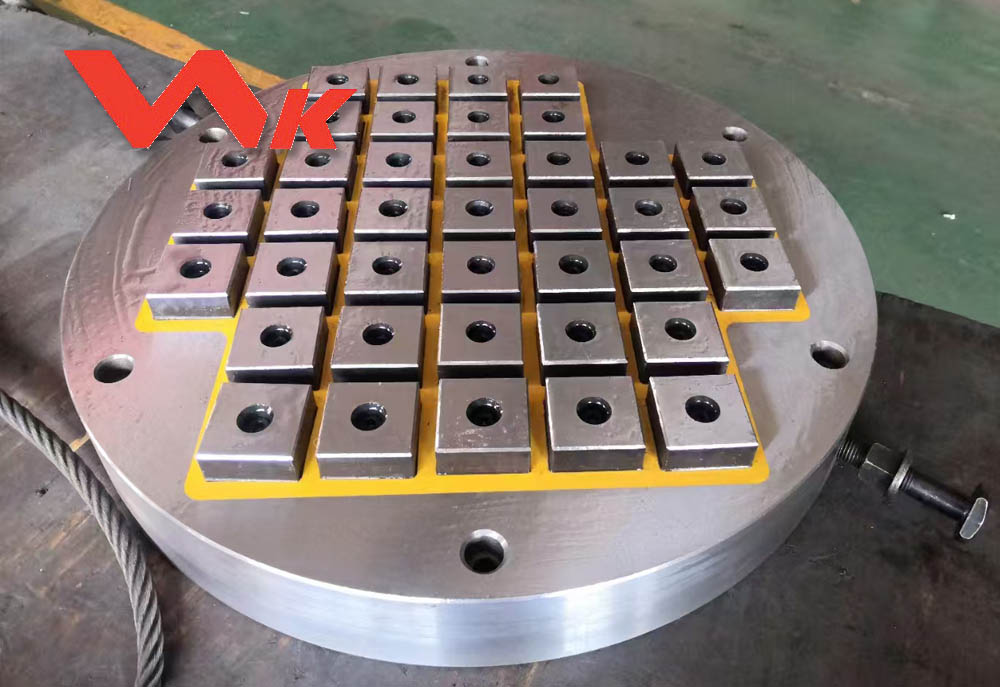

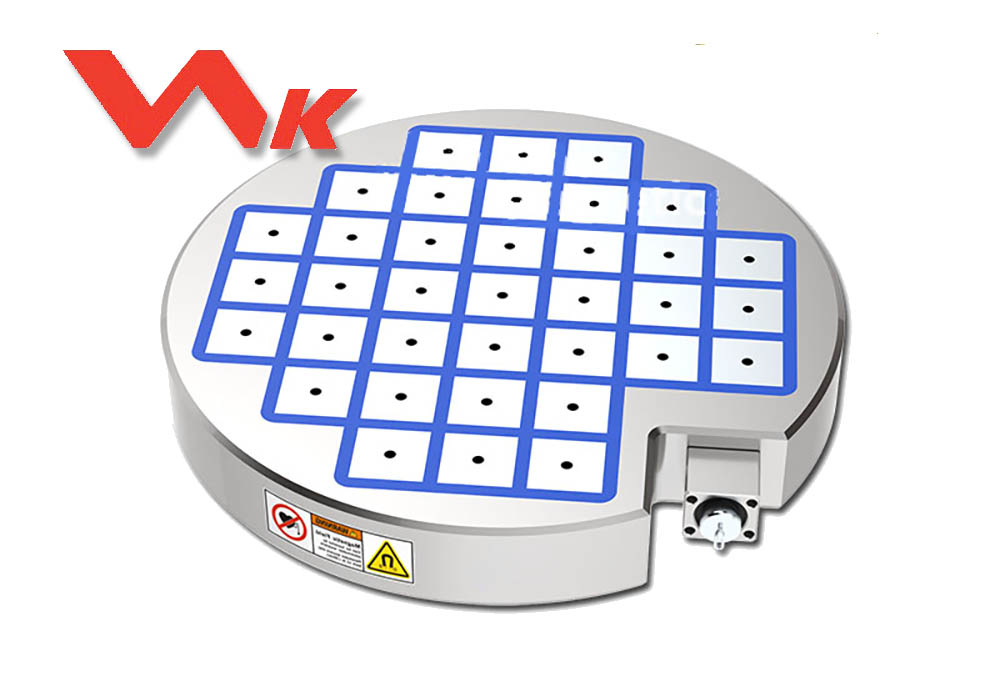

Grid pole round electro permanent magnet has the same grid holes of DYZ series electro permanent magnetic chuck. The pole size is 50x50mm and the holding force can reach to 160N/cm2. 1 second magnetization/demagnetization, fast to operate. Strong holding force with magnetic padding block can realize 5-sides machining.

This round electro permanent magnet is widely used in a variety of machine tool rotary working platform, such as CNC five-axis machining center, horizontal lathe and big boring machine, horizontal turning-machining center, deep hole drilling, rotary milling machine, etc

Models

Model	Diameter	Pole Number	Weight	Thickness	Pole Size
DYRG-400	430mm	22	65kg	68mm	50x50mm
DYRG-500	500mm	32	97kg	68mm
DYRG-600	620mm	52	150kg	68mm
DYRG-700	700mm	76	191kg	68mm
DYRG-800	820mm	96	262kg	70mm
DYRG-900	910mm	120	362kg	70mm
