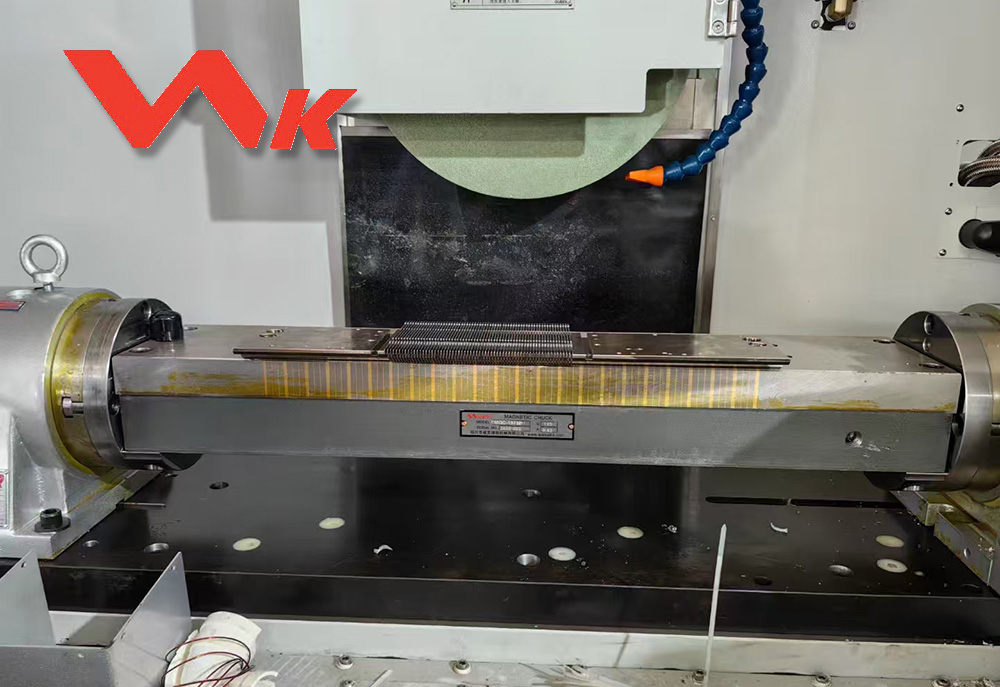

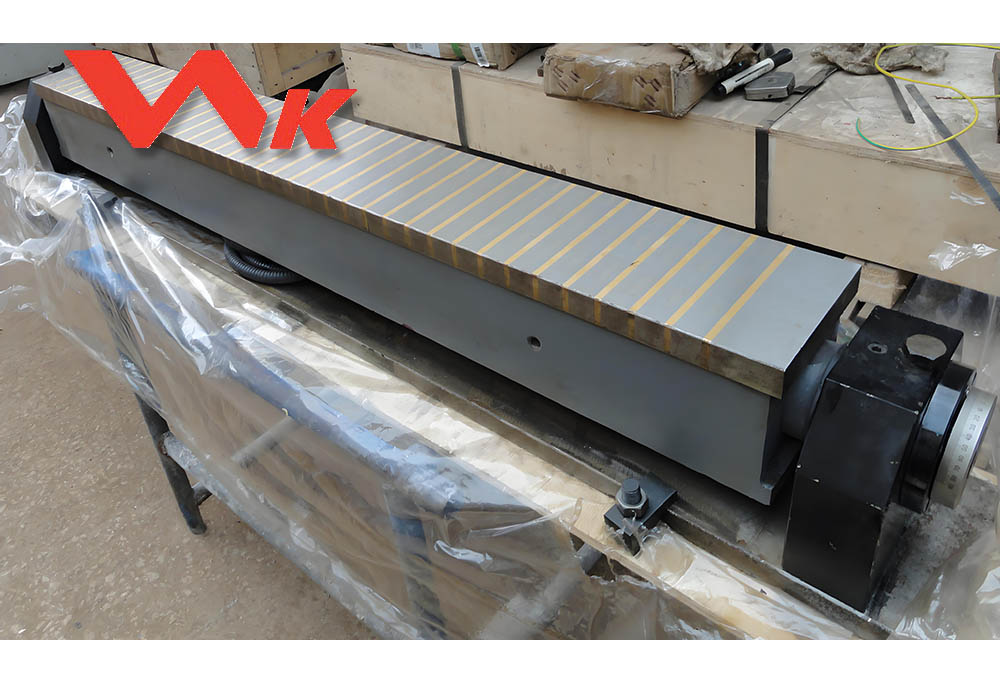

Rotary electromagnetic chuck is a kind of special grinding chuck for angular workpiece. The standard ole pitch is 4mm (1+3) or 19mm (3+5+0.5+5+0.5+5), customized pole pitch is also available.

There is dividing ruler in rotary axle, available to adjust front and back machining angle, the adjustable angle range is ±45°. the chuck and rotary axle are molded integrally, gurantee the enough rigidity in surface grinding.

The temperature difference of the electromagnetic chuck is less than 2℃ after one hours running. low thickness reduce the chuck weight of and increased grinding space. rational distribution of magnetic pole is suitable for the various workpiece from big to small.

Models

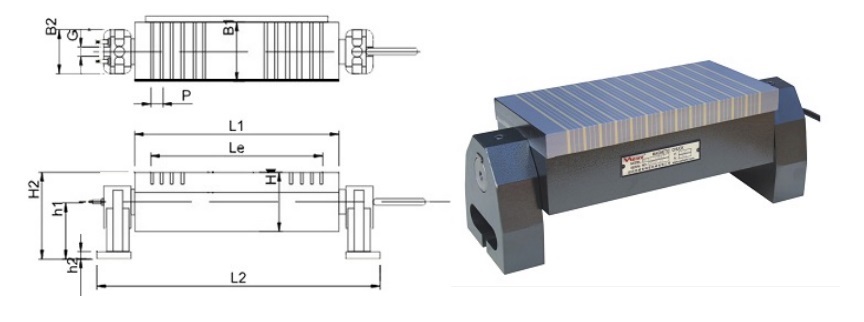

Model	Overall Size mm										Current A	N.W. kg	Pole Pitch P mm	Voltage
	B1	L1	Le	H1	B2	G	h1	h2	L2	H2
EMC-1025	100	250	211	98	120	40	98	18	368	159	0.10	21	19(3+5+0.5 +5+0.5+5)	110V DC
EMC-1230	120	300	240	98	120	40	98	18	418	159	0.19	29
EMC-1225	125	250	211	98	120	40	98	18	368	159	0.18	25
EMC-1530	150	300	240	98	120	40	98	18	418	159	0.14	37
EMC-1535	150	350	296	98	120	40	98	18	468	159	0.15	41
EMC-1545	150	450	408	98	120	40	98	18	568	159	0.20	51
EMC-2050	200	500	452	98	120	45	128	20	618	185	0.34	76
EMC-2060	200	600	560	98	120	45	128	20	718	185	0.45	89
EMD-1530	150	300	240	98	120	40	98	18	468	159	0.14	37	4(1+3)
EMD-1545	150	450	408	98	120	40	98	18	568	159	0.20	51
EMD-2060	200	600	560	98	120	45	128	20	718	185	0.45	89
