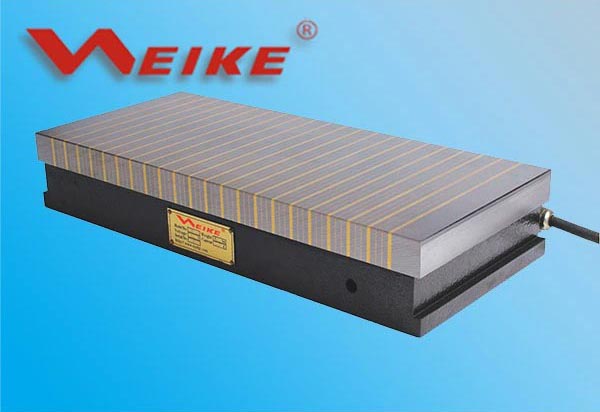

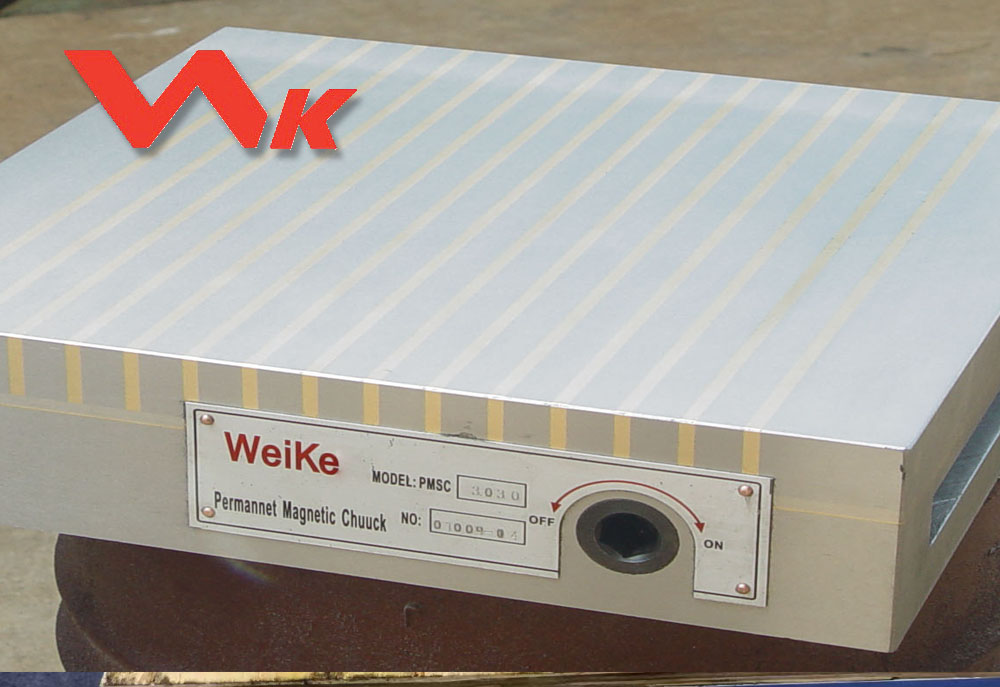

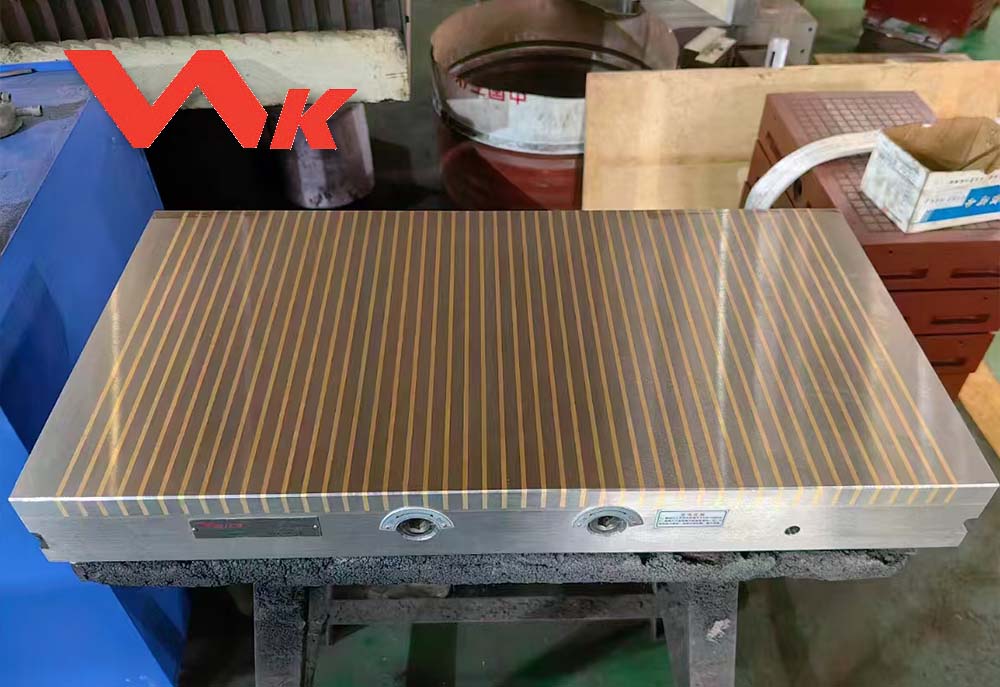

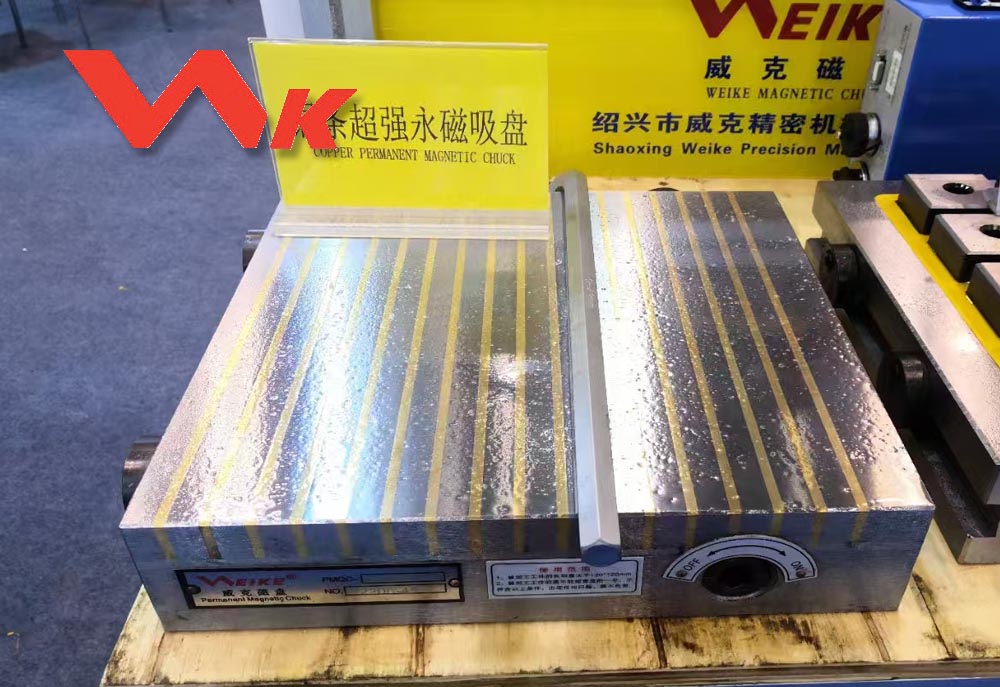

SX series parallel pole permanent magnetic chuck is one type of magnetic milling chuck that is manually (de)magnetized. The model is mainly for milling machine and CNC. Its magnetic isolation material is copper. The strong holding force of permanent magnetic chuck reaches to 160-180 N/cm², which is almost same to grid permanent magnetic table. It is suitable for machining high precision workpiece, sheet workpiece and mould.

The high presicion of the permanent magnetic chuck itself guarantees a workpiece accuracy of between 2um/100mm. It can meet the requirements of precision milling and is suitable for all kinds of precision engraving machines.

Features

Pole pitch: 12+4mm

Maximum magnetic holding force reach to 180 N/cm² for milling.

No magnetic field lines scatteres, will not magnetize the tools.

Waterproof structure, long life of service.

Small force are required in handle operation.

Models

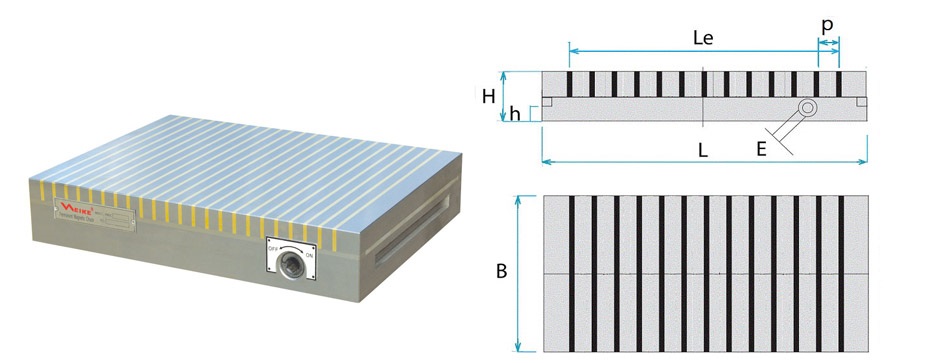

Model	Length mm		Width mm B	Height mm		Weight kg	Holding Force	Handle Hole E	Pole Pitch P
	L	Le		H	h
SX3030	300	280	300	60	20	48	15 kg/cm2	9 mm	12+4
SX3060	600	480	300	70	20	80
SX4040	400	380	400	70	23	75
SX4060	600	580	400	70	23	115
SX4080	800	780	400	80	26	200
SX5050	500	480	500	80	26	113
SX6080	800	780	600	80	26	270
SX50100	1000	970	500	80	28	246
SX60120	1200	1160	600	80	28	345
