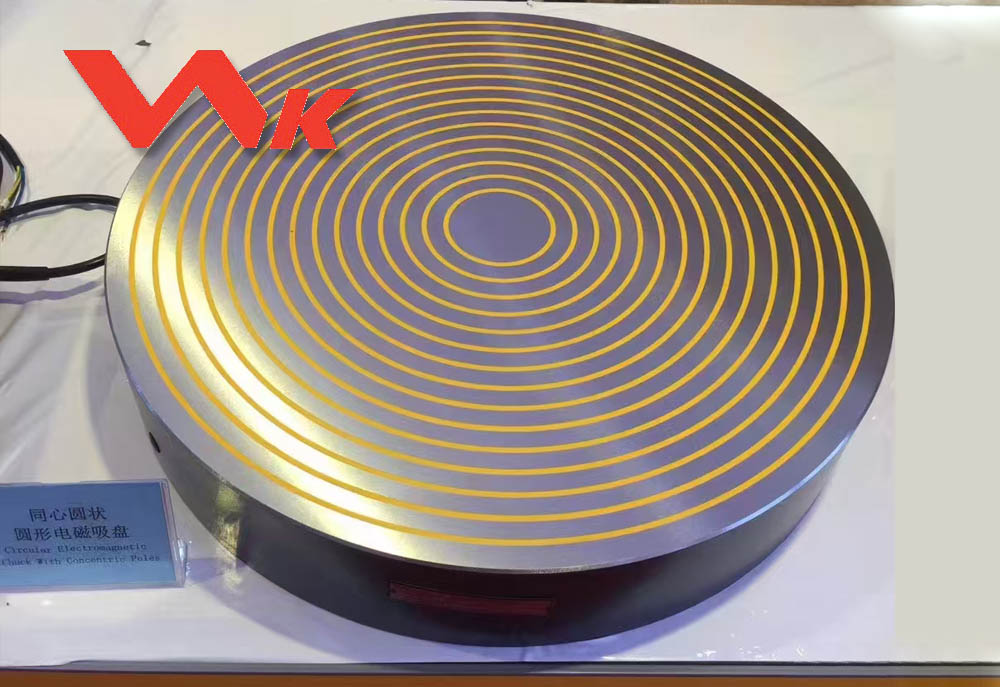

The magnetic poles of round electro magnetic plate are distributed in concentric circles, with a standard pole pitch of 3+6 mm. The pole pitch also be customized according to customers' requirements.

Round electro magnetic plate is mainly used for the grinding of sheet shape workpieces, such as various types of blades. The maximum magnetic holding force can reach 120N/cm2, and the high-precision seamless structure of the panel is robust and waterproof. The base is cast in one piece to minimize mechanical deformation.

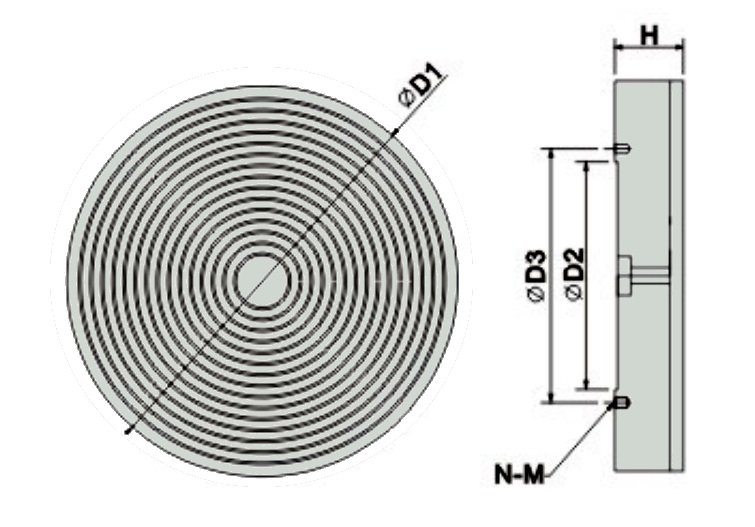

Models

Model	Overall Size mm				n	M	Weight kg	Voltage
	D1	H	D2	D3
EMR300	300	90	160	190	4	12	42	DC 110V
EMR400	400	90	210	250	4	12	92
EMR500	500	90	280	320	6	12	144
EMR600	600	90	350	390	6	12	208
EMR700	700	105	400	460	6	12	295
EMR800	800	105	450	500	6	12	369
EMR900	900	105	500	560	8	16	478
EMR1000	1000	105	550	620	8	16	577
EMR1100	1100	105	600	660	8	16	705
