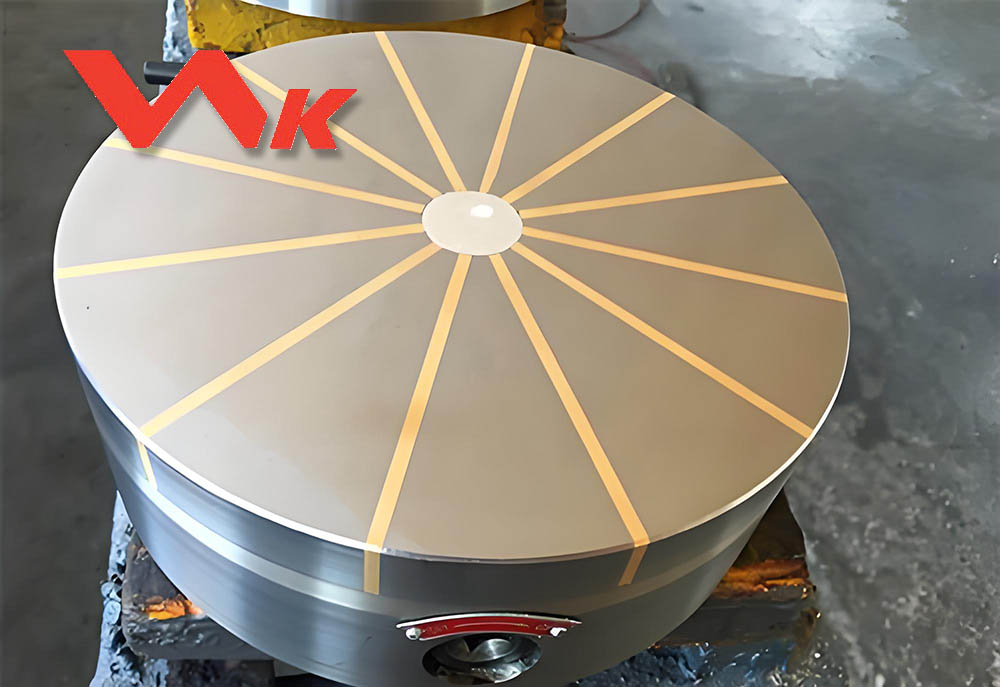

The maximum holding force of the round permanent magentic table can reach to 130N/cm², It is usually used ring-shape grinding process in small vertical surface grinder, circular grinder, internal grinder, and light turning process for lathe.

Symmetrical and balanced design of the radial poles maintains high precision with low variation of the permanent magnetic table.

The round permanent magnetic table can be used for drilling center through holes, centering and cooling liquid supplying. The magnetic padding can also be mounted on the magnetic table to increase the working height for internal and external cylindrical grinding.

Models

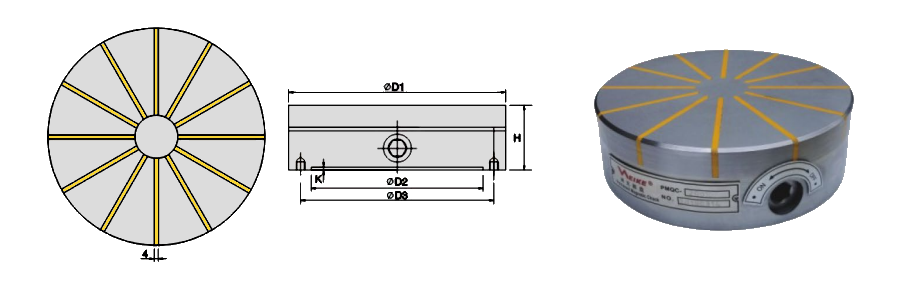

Model	Overall Size mm					n	M	Weight kg
	D1	H	D2	D3	K
RX160R	160	60	120	140	4	4	8	10
RX200R	200	60	160	180	4	4	8	14
RX250R	250	60	200	235	4	4	10	23
RX300R	300	80	250	270	4	7	12	43
RX320R	320	80	250	270	4	6	12	50
RX350R	350	80	250	280	4	6	12	59
RX400R	400	80	270	300	6	12	10	78
RX500R	500	95	270	300	8	12	10	146
RX600R	600	95	320	350	8	12	10	210
