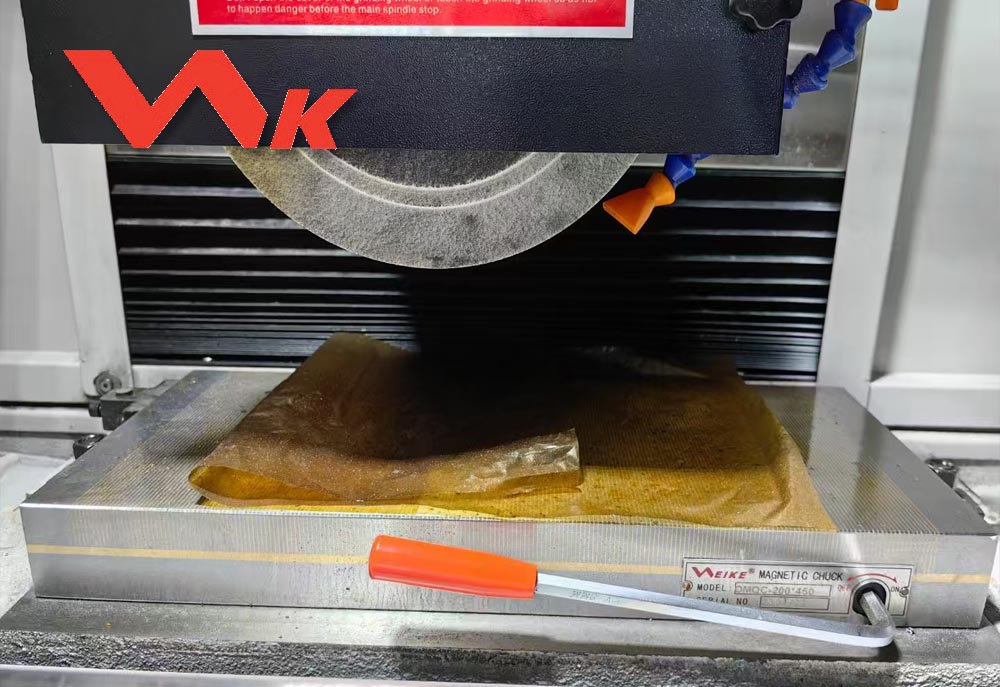

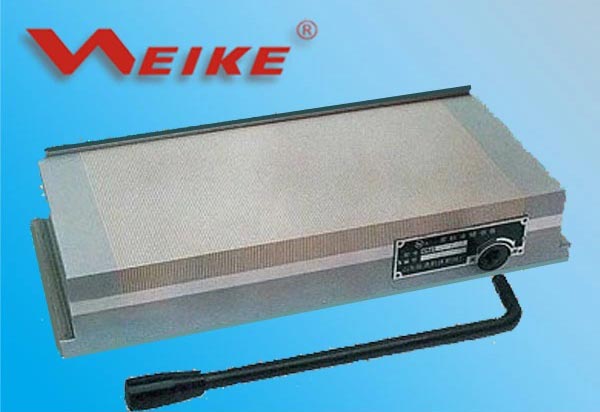

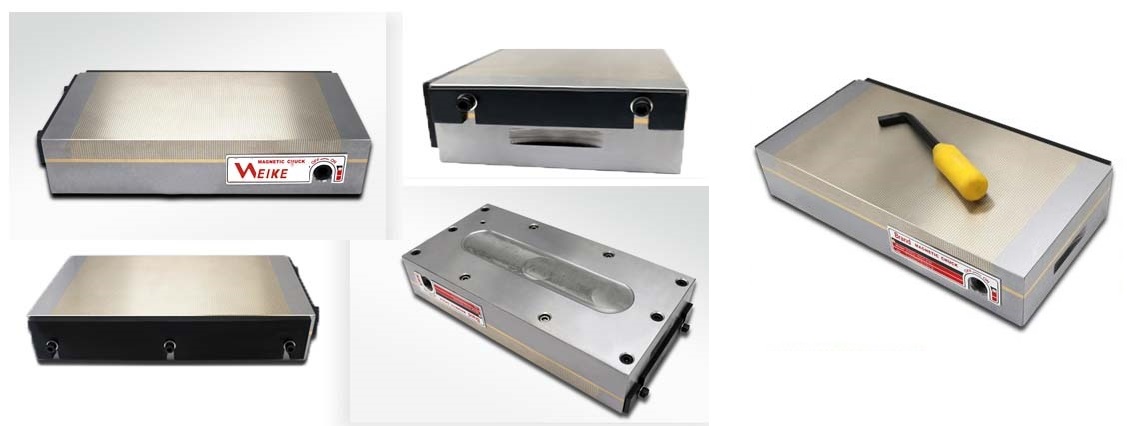

Fine pole permanent magnetic chuck is widely used in facing and surface grinding, EDM, wire-electrode, cutting. Its holding force is 12kg/cm2. Fine pole, even magnetic force, insulated by copper, the machining effect is particularly in small workpiece. It gurantees the precision of workpiece from 2um/100mm.

Features

- The magnetic grinding chuck releases the inner stress of workpieces to improve precision in processing simultaneously.

- Strong attraction come from parallel poles combination, dense distribution of magnetic poles emerges intensive magnetic field.

- Distinctive design of magnetic circuit produces super strong and even attraction; high-performance quality magnetic steel holds attraction for long time stability.

- The permanent magnetic chuck is combined by iron and copper, magnetic bundles are mutually perpendicular, interweave densely, permeate into the bottom of workpiece equality, magnetic bundles are shallow and magnetic circuit densely.

Model

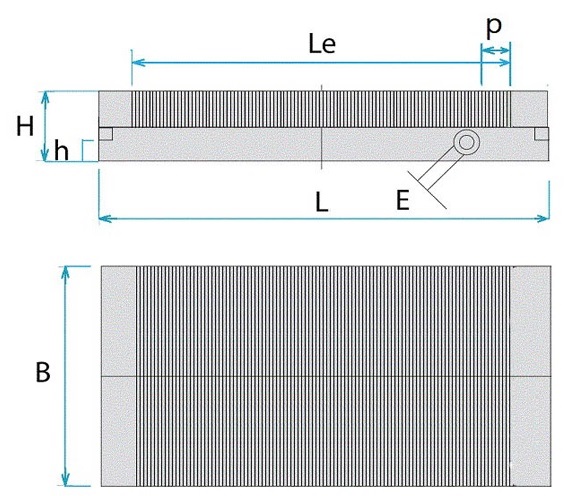

Model	Length mm		Width mm B	Height mm		Weight kg	Holding Force	Handle Hole E	Pole Pitch P
	L	Le		H	h
GX0716	160	140	70	45	15	4.1	12 kg/cm2	8 mm	0.5+1.5mm 1+3mm
GX1515	150	130	150	48	16	8.2
GX1530	300	280	150	48	16	16.8
GX1535	350	330	150	48	16	19.6
GX1540	400	380	150	53	17	23.8
GX1545	450	430	150	53	17	26.5
GX2020	200	180	200	48	16	15
GX2040	400	380	200	53	17	31.8
GX2045	450	430	200	53	17	39.5
GX2550	500	480	250	58	18	53.5
GX3060	600	580	300	58	18	77
