The electro permanent magnetic grinding table is the permanent magnetic type table developed specifically for grinding machines. In contrast to electromagnetic chucks, electro permanent magnetic grinding table does not need to be continuously energized during working, which saves energy and avoids thermal deformation efficiently.

The grinding table has excellent steel properties and maintain precision. The holding force can be adjusted up to a maximum of 120 N/cm2. In addition to surface grinders, the electro-permanent grinding magnet can also be used in knife grinders, EDM machines, wire cutting machines and other equipment.

Models

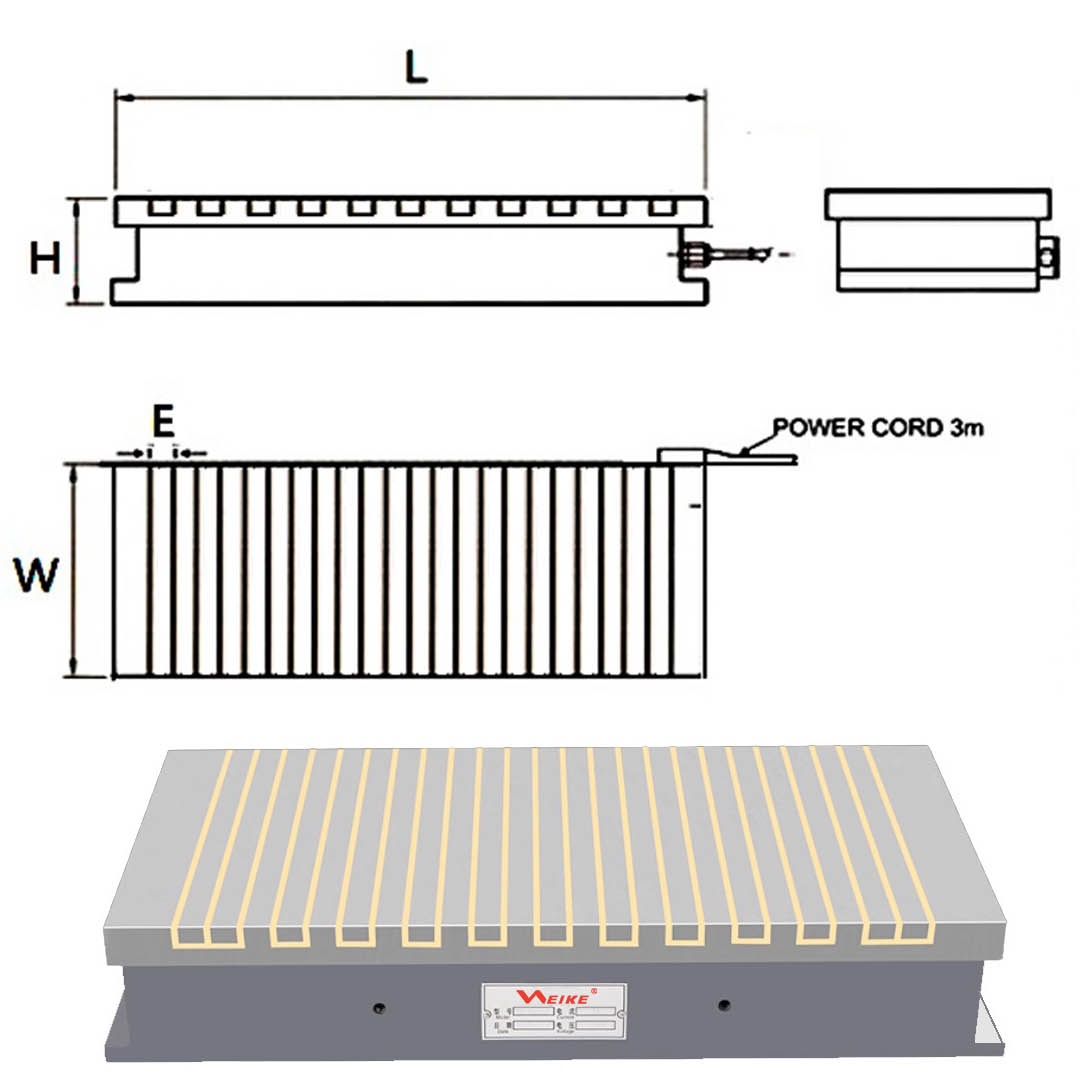

Model	Overall Size(mm)			Weight Kg	Pole Pitch(mm) E	Voltage
	W	L	H
EMP 3060	200	450	85	110	3+16	AC 380V or other 3 phase voltage
EMP 30100	250	500	85	180
EMP 4060	300	600	85	145
EMP 4080	400	800	85	190
EMP 50100	400	1000	85	295
EMP 50120	500	1200	85	350
EMP 60150	600	1500	85	510
EMPE 1540	150	400	90	40	1+3
EMPE 2045	200	450	90	55
EMPE 3060	300	600	90	115
EMPE4060	400	600	90	176
EMPE 4080	400	800	90	205
