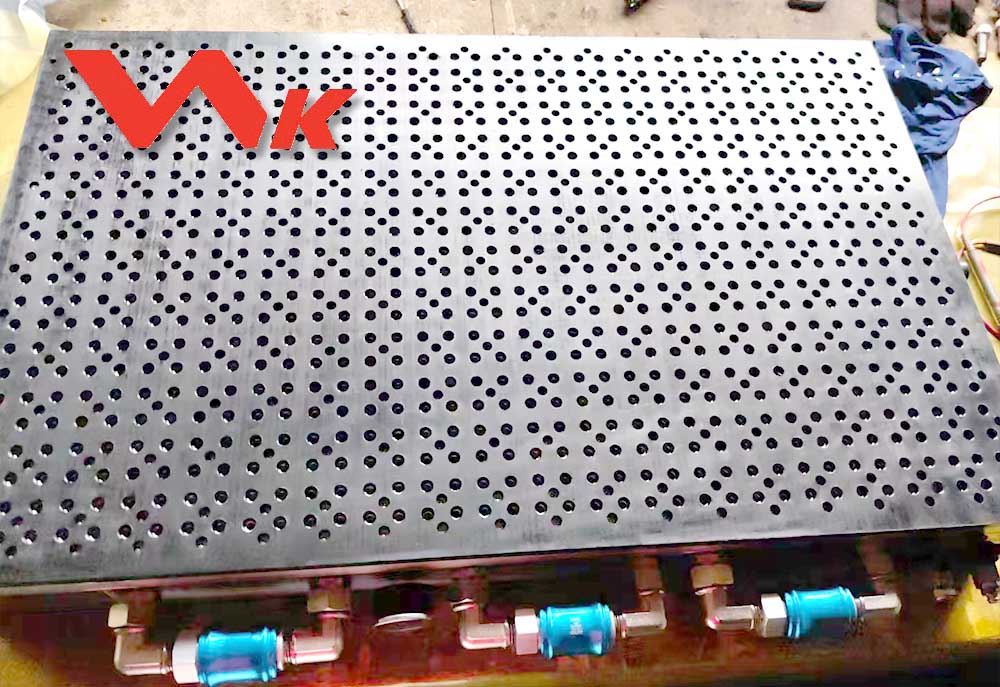

Compared with the grid vacuum chuck, the multi holes vacuum table does not need silicone strips, it can forms the vacuum area automatically when the workpiece is placed on the table, which is more convenient to operate. At the same time, holes can be drilled on the workpiece. The multi holes vacuum table allows for quick clamping and through-holes. It is an upgraded product of the grid vacuum chuck.

The vacuum table adopts stainless steel filter, good air permeability, strong corrosion resistance without clogging and rust, greatly extending the life of the chuck.

One or more vacuum suction zones, each vacuum suction zone has the function of keeping pressure and the suction holes are independent of each other, a switch controls a vacuum suction zone, which can be used freely.

The multi holes vacuum table can be used to machine all kinds of non-magnetic material flat workpieces, aluminum, plastic, glass, copper, wood, etc.

Models

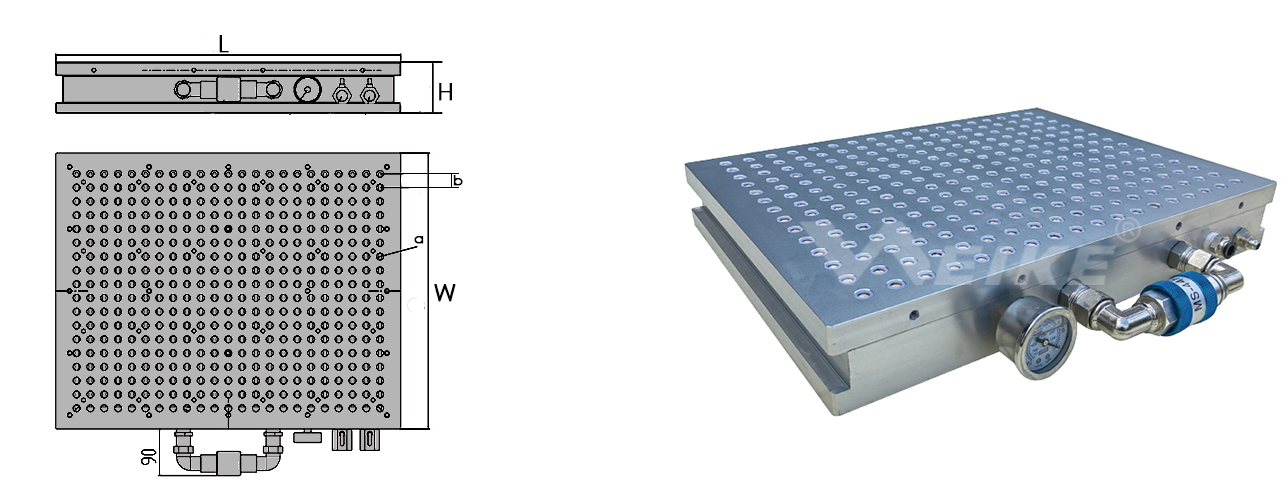

Model	Overall Size mm			Hole Numbers	Valve Number	Hole diameter a	Hole Distance b
	L	W	H
VCM-3040	400	300	74	234	1	10 mm	20 mm
VCM-4040	400	400	74	324	1
VCM-4050	500	400	74	414	1
VCM-4060	600	400	74	504	2
VCM-4080	800	400	74	684	2
VCM-50100	1000	500	74	1104	3
VCM-60120	1200	600	74	1624	4
