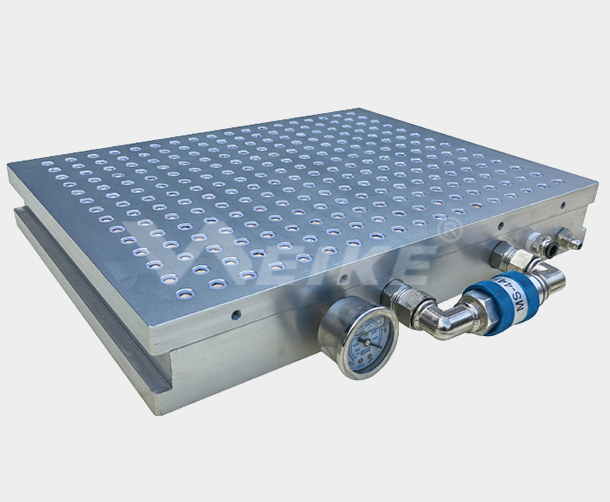

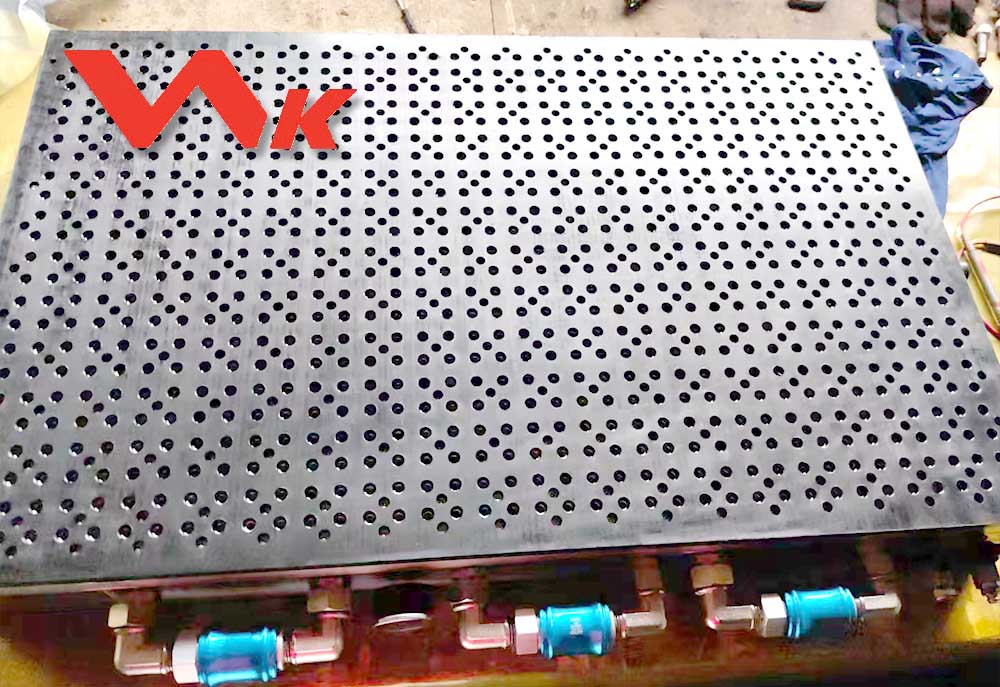

Multi Holes Vacuum Table

Compared with the grid vacuum chuck, the multi holes vacuum table does not need silicone strips, it can forms the vacuum area automatically when the workpiece is placed on the table, which is more convenient to operate. At the same time, holes can be drilled on the workpiece. The multi holes vacuum table allows for quick clamping and through-holes. It is an upgraded product of the grid vacuum chuck.

The vacuum table adopts stainless steel filter, good air permeability, strong corrosion resistance without clogging and rust, greatly extending the life of the chuck.

One or more vacuum suction zones, each vacuum suction zone has the function of keeping pressure and the suction holes are independent of each other, a switch controls a vacuum suction zone, which can be used freely.

The multi holes vacuum table can be used to machine all kinds of non-magnetic material flat workpieces, aluminum, plastic, glass, copper, wood, etc.

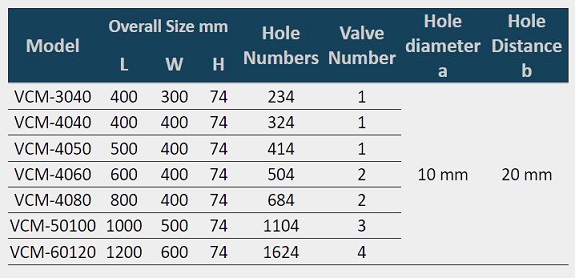

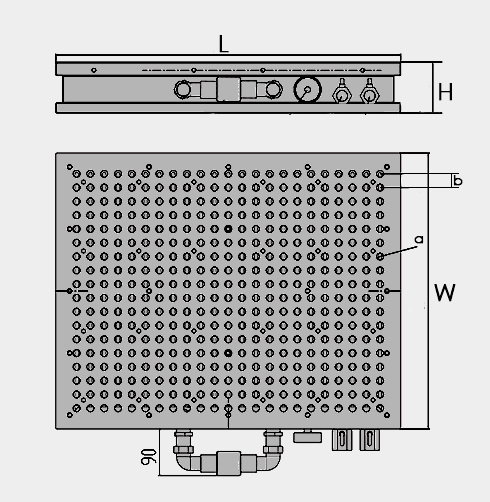

Model
