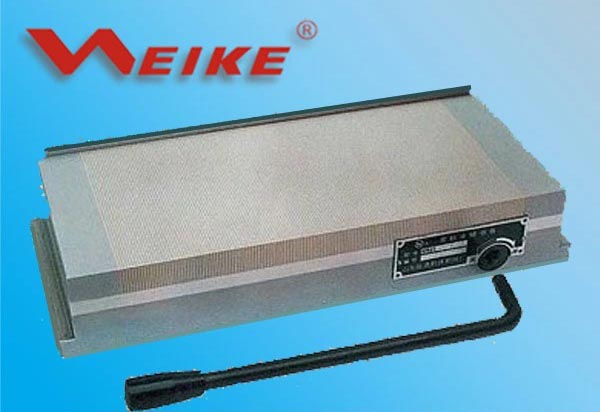

Fine Pole Permanent
Magnetic Chuck

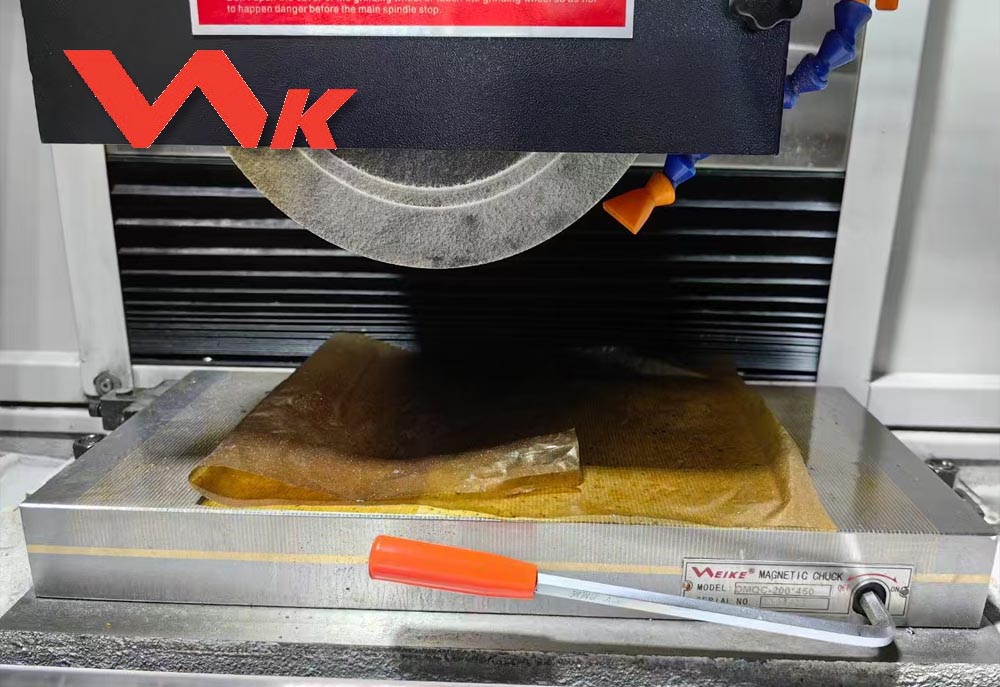

Fine pole permanent magnetic chuck is widely used in facing and surface grinding, EDM, wire-electrode, cutting. Its holding force is 12kg/cm2. Fine pole, even magnetic force, insulated by copper, the machining effect is particularly in small workpiece. It gurantees the precision of workpiece from 2um/100mm.

Features

- The magnetic grinding chuck releases the inner stress of workpieces to improve precision in processing simultaneously.

- Strong attraction come from parallel poles combination, dense distribution of magnetic poles emerges intensive magnetic field.

- Distinctive design of magnetic circuit produces super strong and even attraction; high-performance quality magnetic steel holds attraction for long time stability.

- The permanent magnetic chuck is combined by iron and copper, magnetic bundles are mutually perpendicular, interweave densely, permeate into the bottom of workpiece equality, magnetic bundles are shallow and magnetic circuit densely.

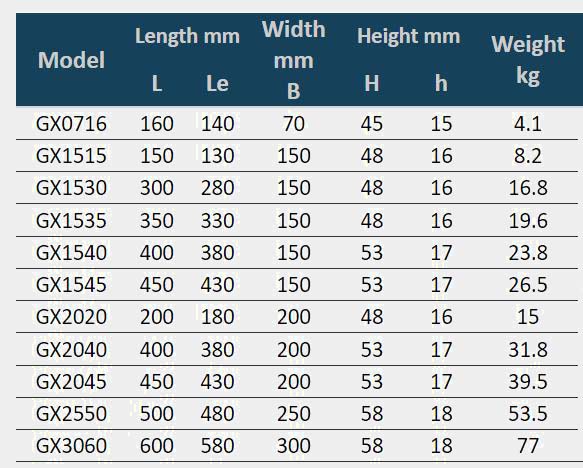

Models

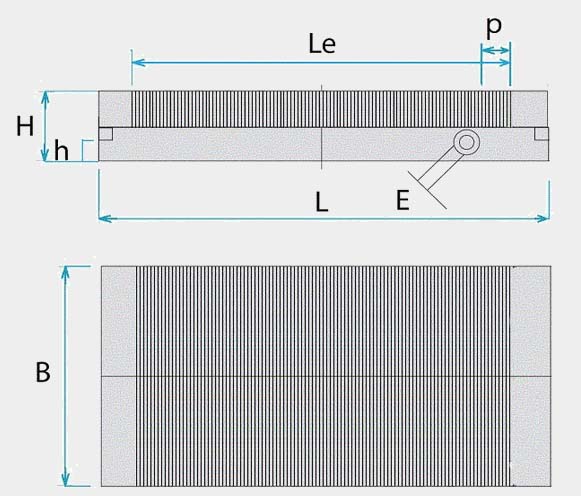

Handle Hole E=8mm
Pole Pitch P=0.5+1.5mm/1+3mm
