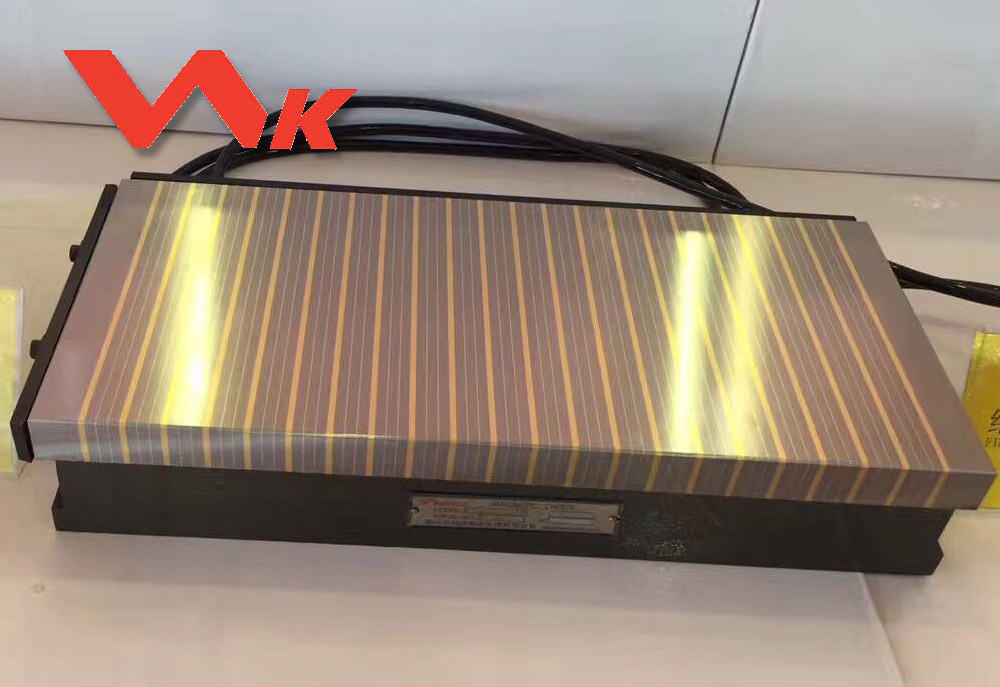

Electromagnetic Table

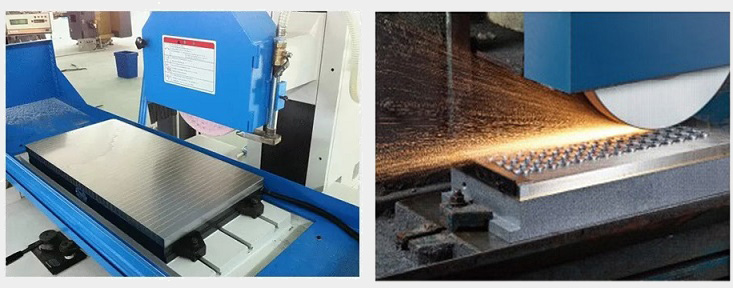

Electromagnetic table as a standard clamping tool of surface grinding machine. Its holding force is powerful, safe and reliable for using, and very convenient to grind the workpieces which are not suitable to clamp by machinery. The electromagnetic table connects with direct current supply. The material of the magnetic isolation is brass, The magnetic force can reach to 120N/CM².

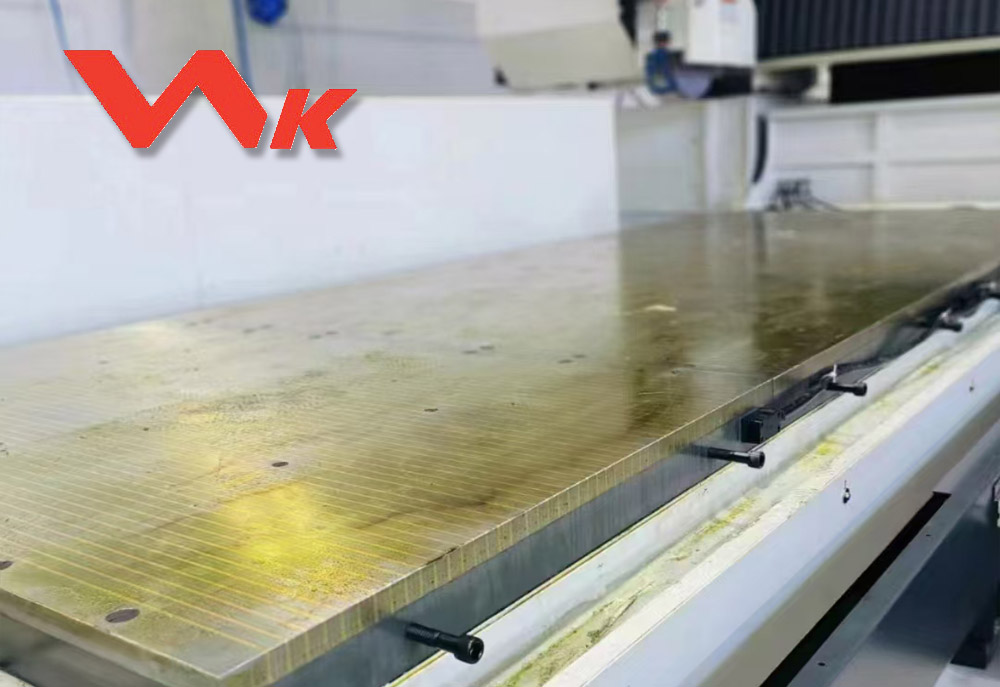

The electro magnetic table is also used in workpieces which require to be processed by facing machine. It is most effective to heavy grinding of forming machine, facing machine, facing type milling machine. The series of the electromagnetic table is the perfect choice for improving production efficiency and reducing working intensity of labors.

Features

- Strong holding force over entire table surface. It has good stabilization and few remanence. Few mechanical and thermal deformation.

- Low height of the magnetic table for increasing clearance of larger workpieces, and makes it light and much grinding space.

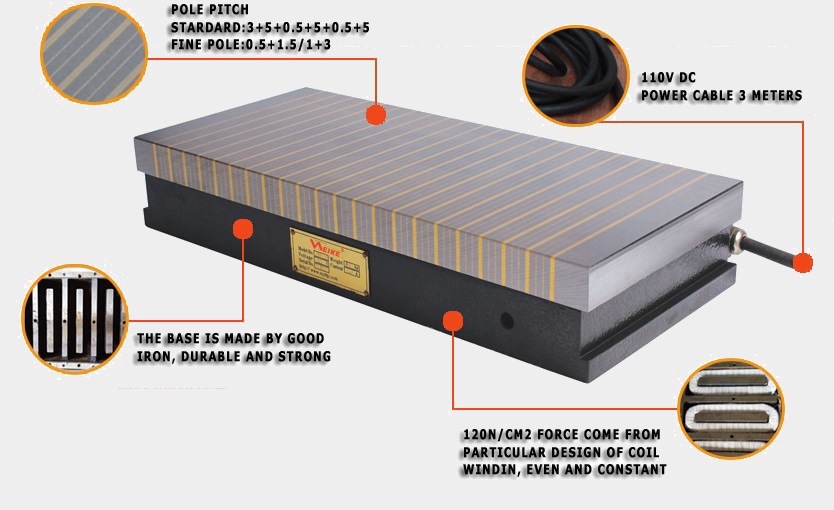

- Three options of pole pitch 3+16mm (3+5+0.5+5+0.5+5), 0.5+1.5mm and 1+3mm, also supply 3+6mm if requires. Fine pole divisions for more uniform magnetic holding of small parts

- High flatness accuracy of 0.01mm/1000mm. Special flatness and parallelism tolerances are available on request.

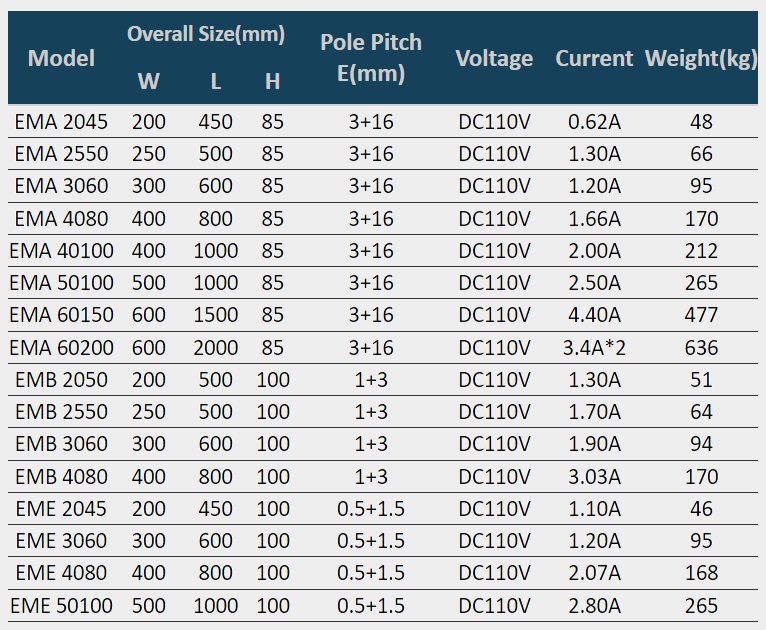

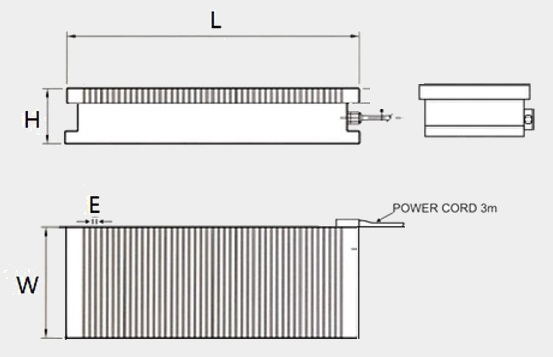

Models
