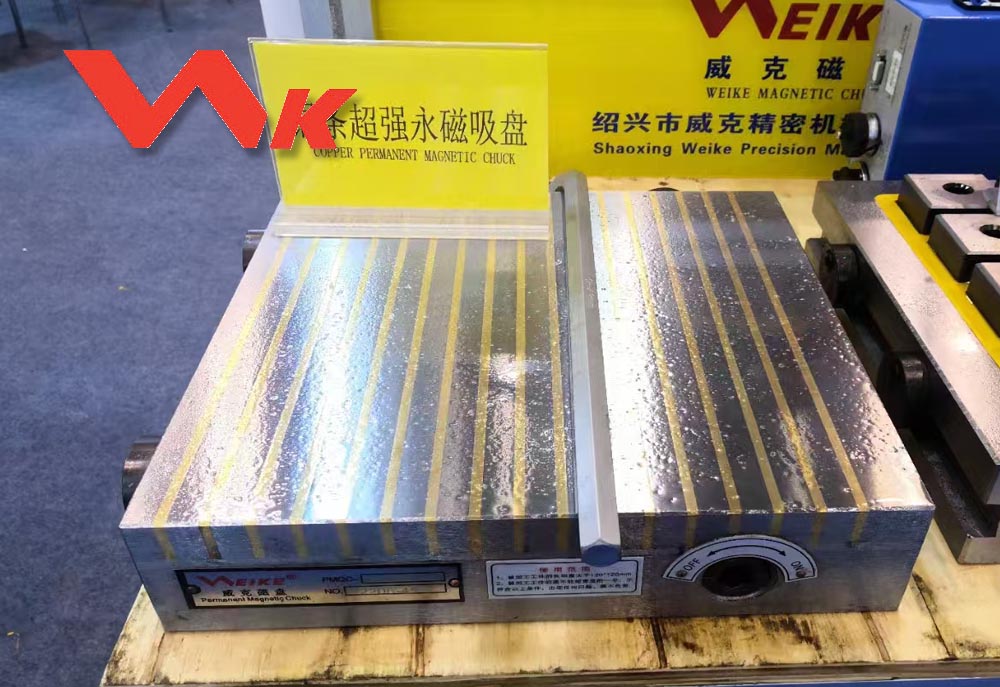

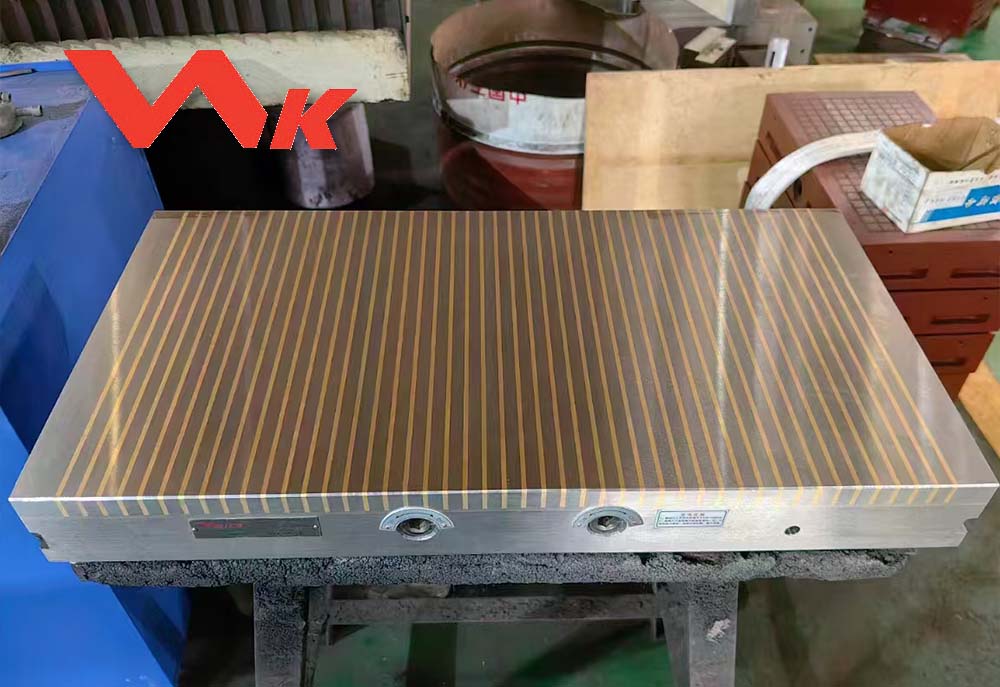

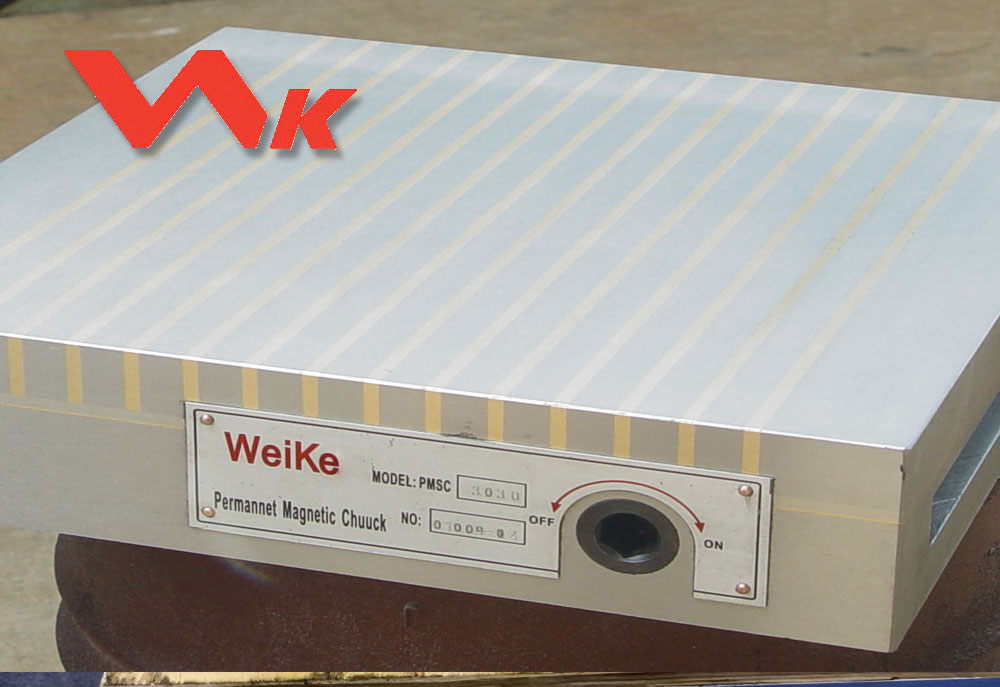

Parallel Pole Permanent
Magnetic Milling Chuck

SX series parallel pole permanent magnetic chuck is one type of magnetic milling chuck that is manually (de)magnetized. The model is mainly for milling machine and CNC. Its magnetic isolation material is copper. The strong holding force of permanent magnetic chuck reaches to 160-180 N/cm², which is almost same to grid permanent magnetic table. It is suitable for machining high precision workpiece, sheet workpiece and mould.

The high presicion of the permanent magnetic chuck itself guarantees a workpiece accuracy of between 2um/100mm. It can meet the requirements of precision milling and is suitable for all kinds of precision engraving machines.

Features

- Pole pitch: 12+4mm
- Maximum magnetic holding force reach to 180 N/cm² for milling.
- No magnetic field lines scatteres, will not magnetize the tools.
- Waterproof structure, long life of service.
- Small force are required in handle operation.

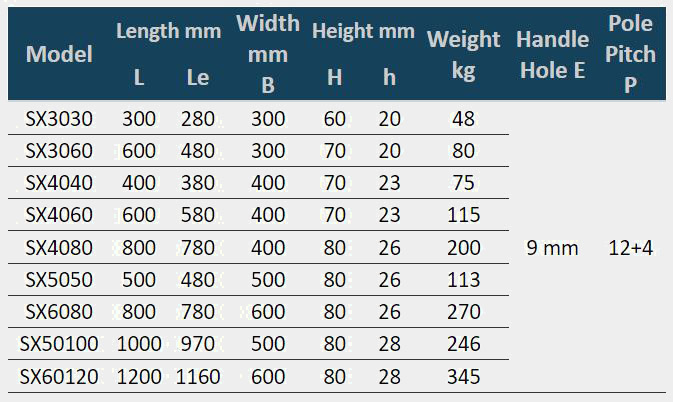

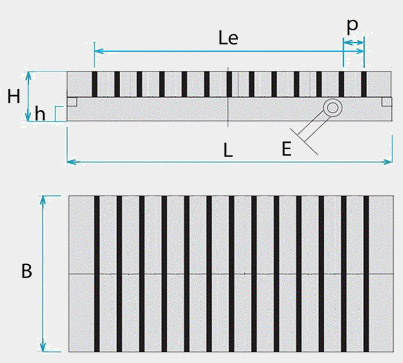

Models
