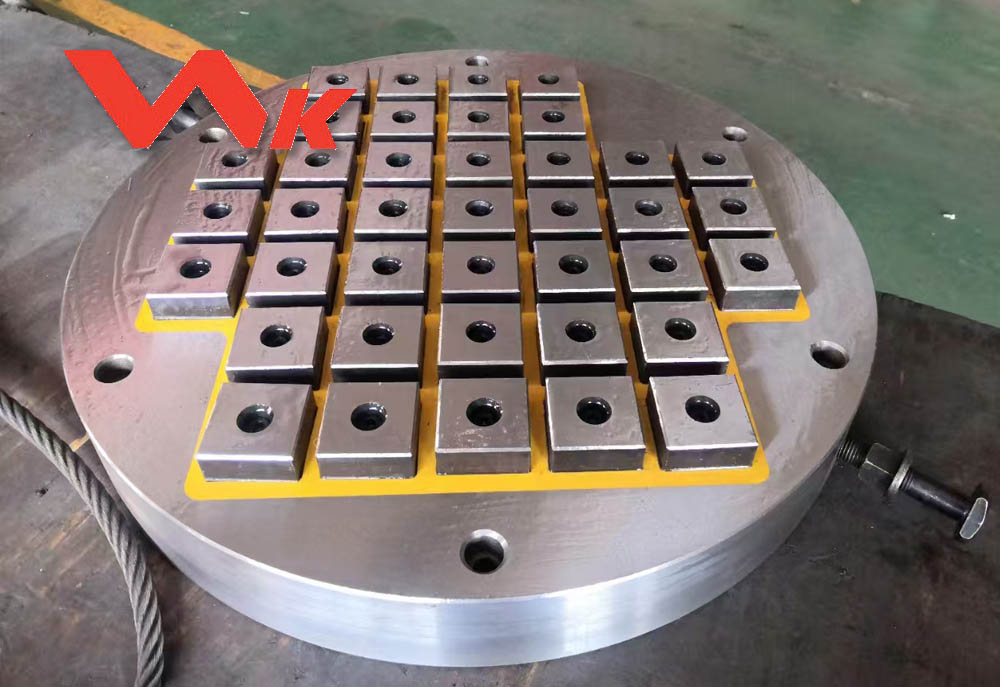

Grid Pole Round
Electro Permanent Magnet

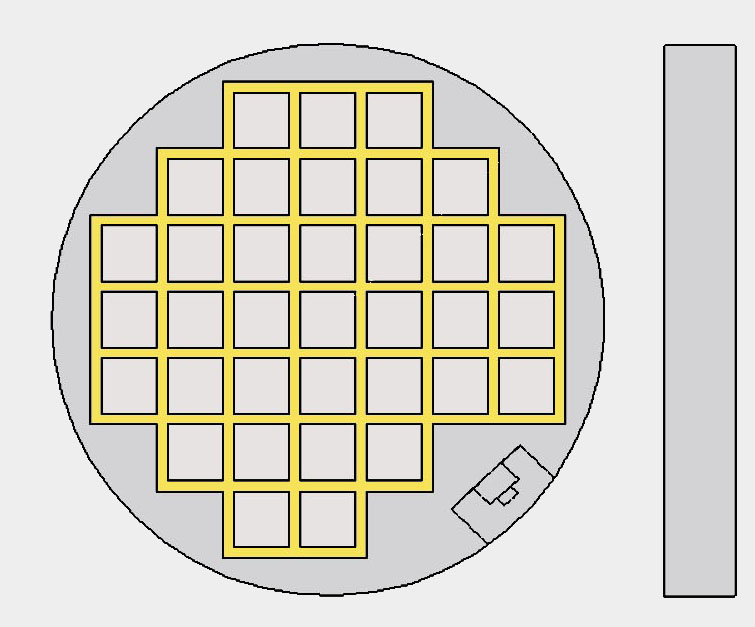

Grid pole round electro permanent magnet has the same grid holes of DYZ series electro permanent magnetic chuck. The pole size is 50x50mm and the holding force can reach to 160N/cm2. 1 second magnetization/demagnetization, fast to operate. Strong holding force with magnetic padding block can realize 5-sides machining.

This round electro permanent magnet is widely used in a variety of machine tool rotary working platform, such as CNC five-axis machining center, horizontal lathe and big boring machine, horizontal turning-machining center, deep hole drilling, rotary milling machine, etc

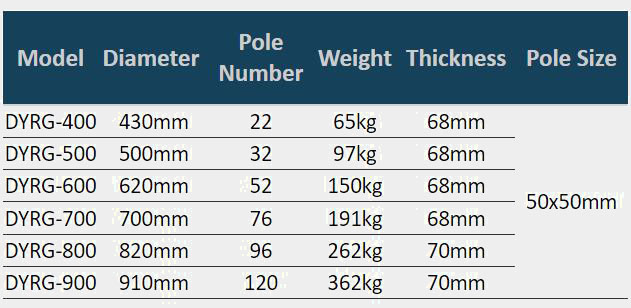

Models
